Brand Name : BSK
Model Number : Air Driven Diaphragm Pump
Place of Origin : Guangzhou
MOQ : Negotiation
Price : Netotiable
Payment Terms : FOB T/T
Supply Ability : 10000/mon
Delivery Time : 5days
Packaging Details : carton
hs code : 8413501020
product : Pneumatic Diaphragm Pump
Material : Casting Steel Material
Maximum lift : 70M
Maximum particle size : 6MM
Type : Double Acting
Feature : Eco Friendly
Eco Friendly Pneumatic Diaphragm Pump Precision Casting Steel Material
Pneumatic Diaphragm Pump Introduction
air operated diaphragm pump are operated with compressed air ,suitable for pumping fluids with particles, and various liquids, which are highly viscous, volatile, corrosive or toxic, as well as colloids.
Air operated pump using compressed air as the power source. It can convey corrosive, volatile, flammable, poisonous liquid or fluid with particles and high viscosity liquid etc.
Pneumatic Diaphragm Pump Parameters
Item | Description | Unit | Reference Figure |
1 | Maximum air inlet pressure | Mpa | 0.83 |
2 | Maximum flow rate | L/Min | 378 |
3 | Maximum lift | M | 70 |
4 | Maximum outlet pressure | Mpa | 0.83 |
5 | Maximum particle size | mm | 6 |
6 | Weight | kg | 23 |
7 | Noise level | db | <70 |
Pneumatic Diaphragm Pump Application
The pump can suck various strong acid, alkali and corrosive liquid etc.
Pneumatic Diaphragm Pump Details
JBSL is specialized in the integration of development, design,production, sales, trade and services of diaphragm pump.we provide all kind of Pneumatic Diaphragm Pump :
![]() |

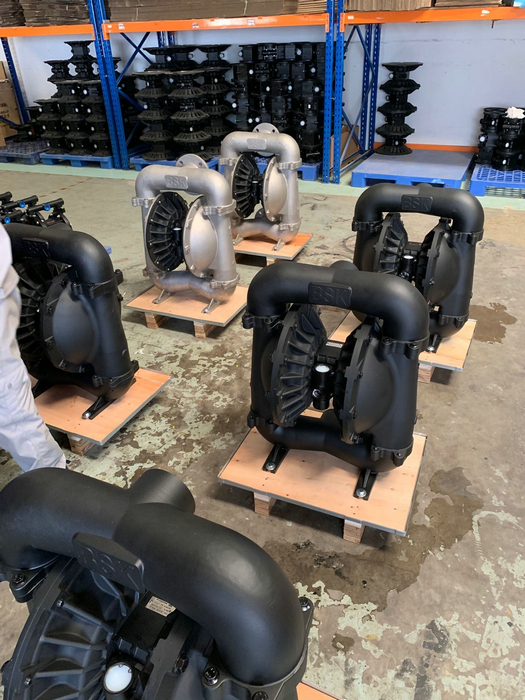

Eco Friendly Pneumatic Diaphragm Pump Precision Casting Steel Material Images |
